ZC2228
High-performance general-purpose server
ZC2228 Overview
Domestic ultra-high computing power: powered by the domestic high-performance Hygon No.2 (7200/5200 series) processor; 10 PCIe expansion slots supporting up to 2 dual-width high-performance GPU cards to meet high computing demands. Domestic firmware, a Chinese management interface and domestic operating systems together build an autonomous and controllable domestic platform.
AI Smart Remote Management
Supports IPMI remote management for real-time monitoring and operations (including power on/off) from a remote location, allowing administrators to maintain the system promptly. Supports a BMC web management interface in Chinese to quickly view server sensor health, asset information (including FRU), network configuration and server event logs, and to perform remote power on/off, KVM management and remote firmware updates, optimizing on-site O&M workflow and costs.
Massive Storage & Outstanding Performance
Front supports up to 25 x 2.5" drives + rear 4 x 3.5" or 4 x 2.5" drives, delivering flexible data storage expansion; onboard 2 x M.2 slots support 2 M.2 NVMe SSDs.
Modular Design for Safety & Stability

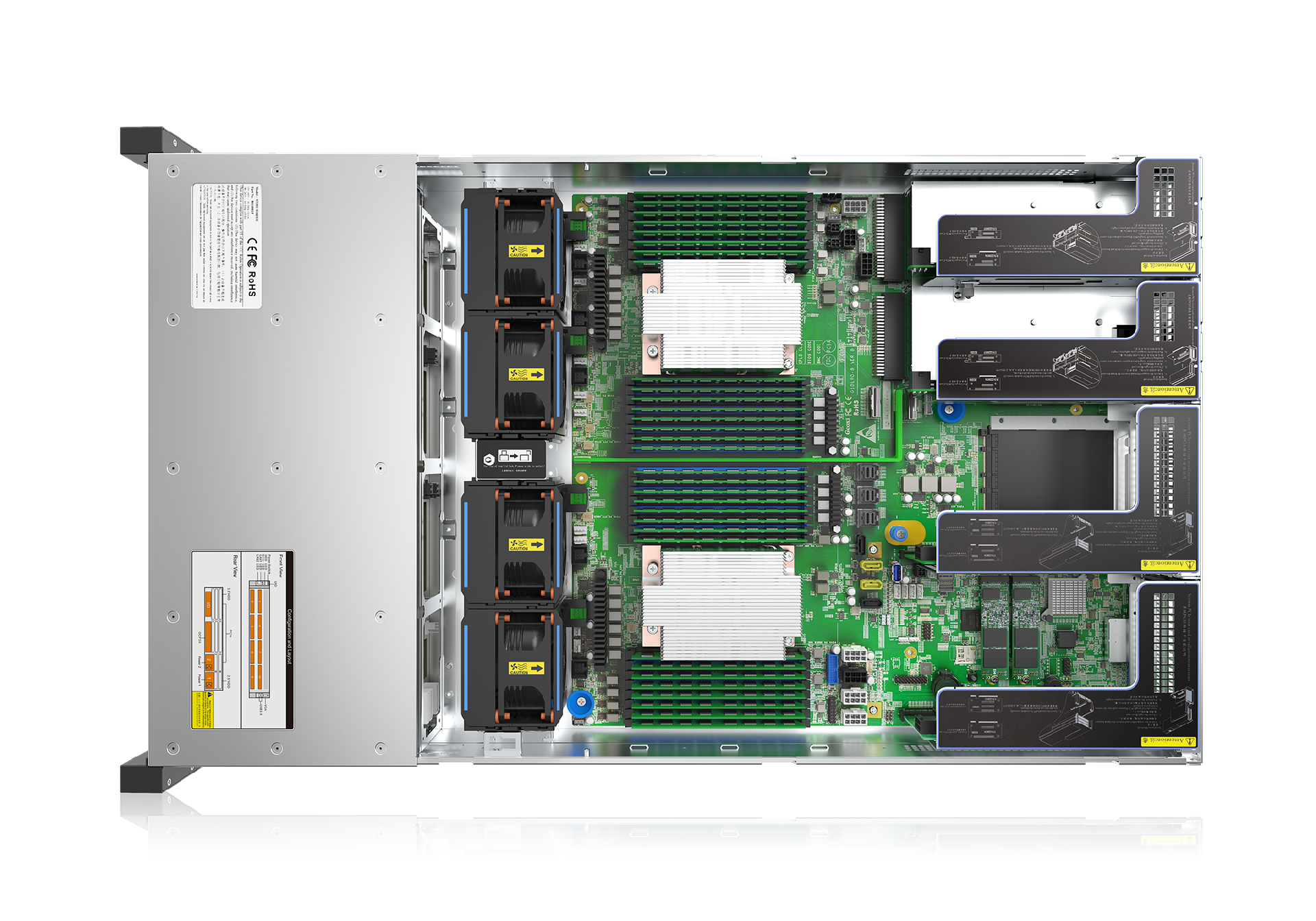

Drives, power supplies and fans use a fully modular design. PCIe expansion slots are interchangeable with drive expansion bays, and the rear PCIe expansion bay can be replaced with 4 x 3.5" or 4 x 2.5" rear drives. The whole system passes rigorous compatibility and reliability testing, with comprehensively improved stability.
| System Model | ZC2228 |
|---|---|
| Processor | Supports 2 Hygon No.2 7300 series processors |
| Chipset | / |
| Memory | 32 DDR4 memory slots, supports up to 2666MHz memory |
| Storage Controller | 2 x PCIe 3.0 x4 M.2 slots, 3 x MiniSAS HD ports |

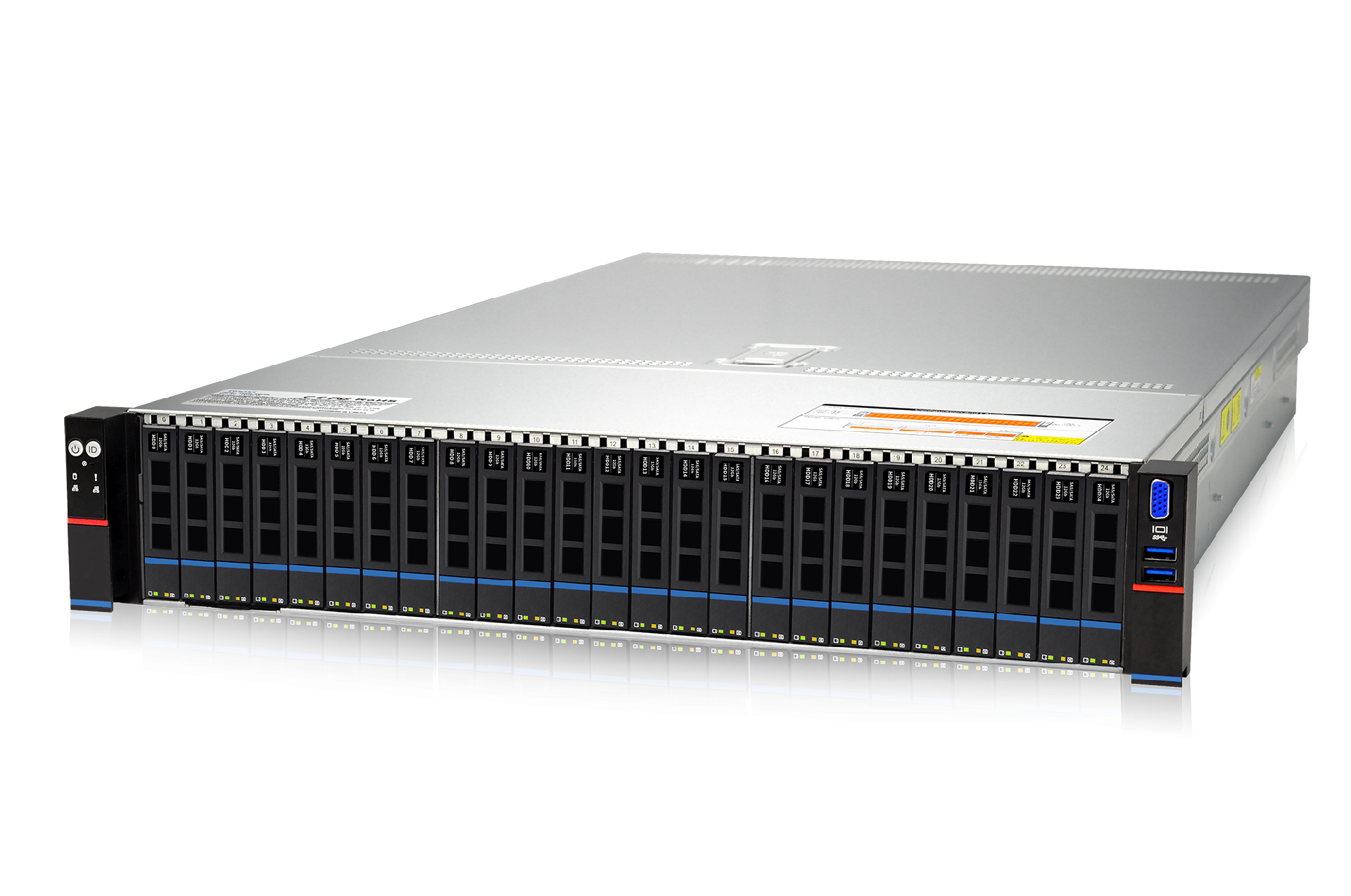

| Storage | Front: 25 x 2.5" SAS/SATA hot-swap drives; Rear: optional support for 2 x 2x 3.5" SAS/SATA or 2 x 2x 2.5" SAS/SATA/U.2 drives |
| Network | Onboard 2 x 1GbE (RJ45) |

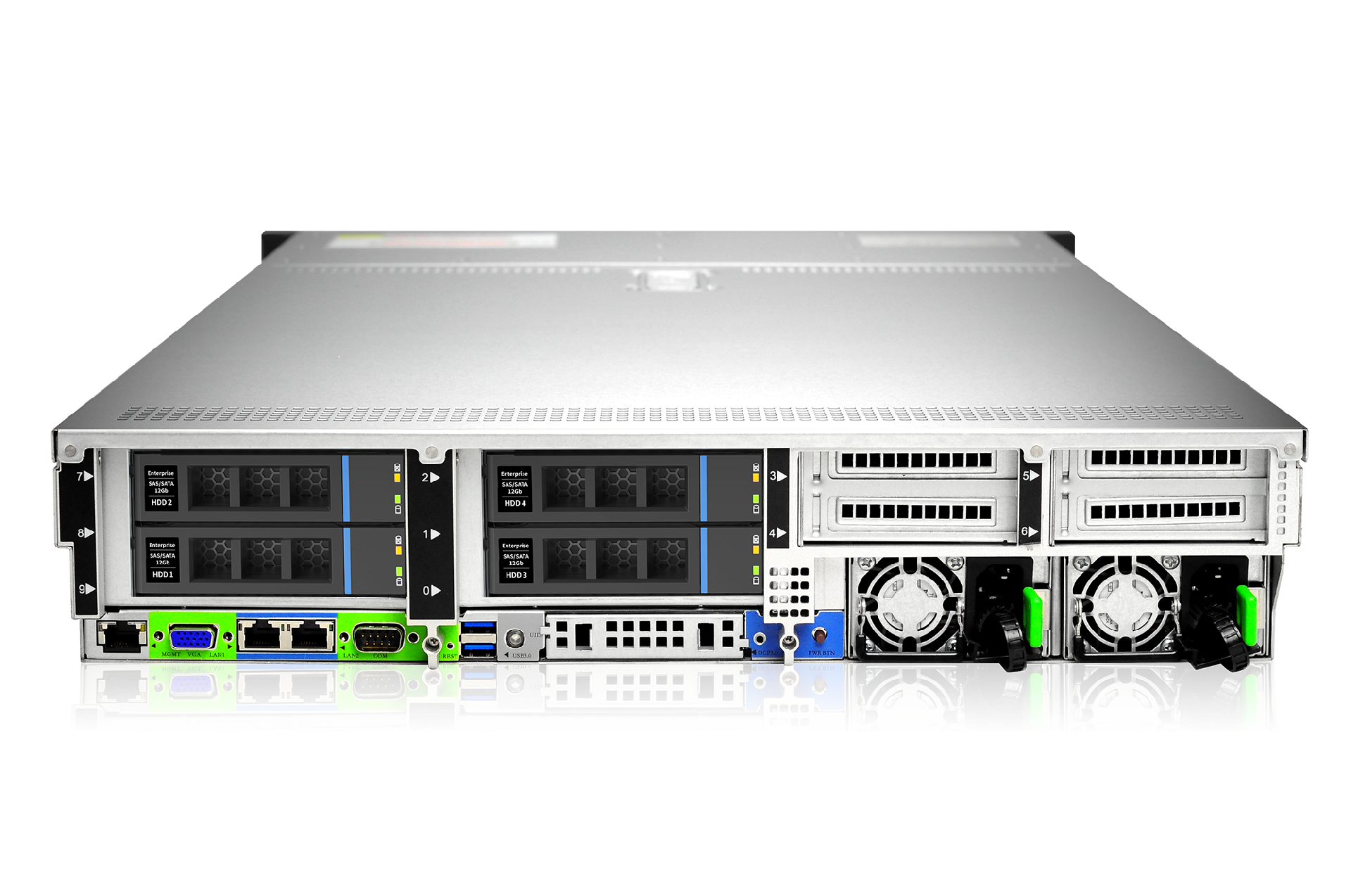

| I/O Ports | Front: 2 x USB2.0; Rear: 1 x VGA, 2 x USB3.0, 1 x management port, 2 x RJ45 ports; OCP slot: 1 x OCP 3.0 (PCIe x8) |
| PCIe Expansion | 6 full-height PCIe slots, 4 half-height PCIe slots |
| Power Supply | Supports 550W/800W/1300W/1600W/2200W redundant power supplies (matched to actual load) |
| Fans | Standard 4 x 8038 hot-swap fans, optional 4 x 8056 hot-swap fans |
| Management | 1 x RJ45 management port, IPMI 2.0 |
| Security | Supports TPM module |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, UnionTech UOS, Kylin Advanced Server OS, BC-Linux |
| Server Dimensions | 748 x 433.4 x 87.6mm (D x W x H) |
| Operating Temperature | Operating temperature: 5°C - 35°C (no direct sunlight); Storage temperature: -40°C - 70°C |
